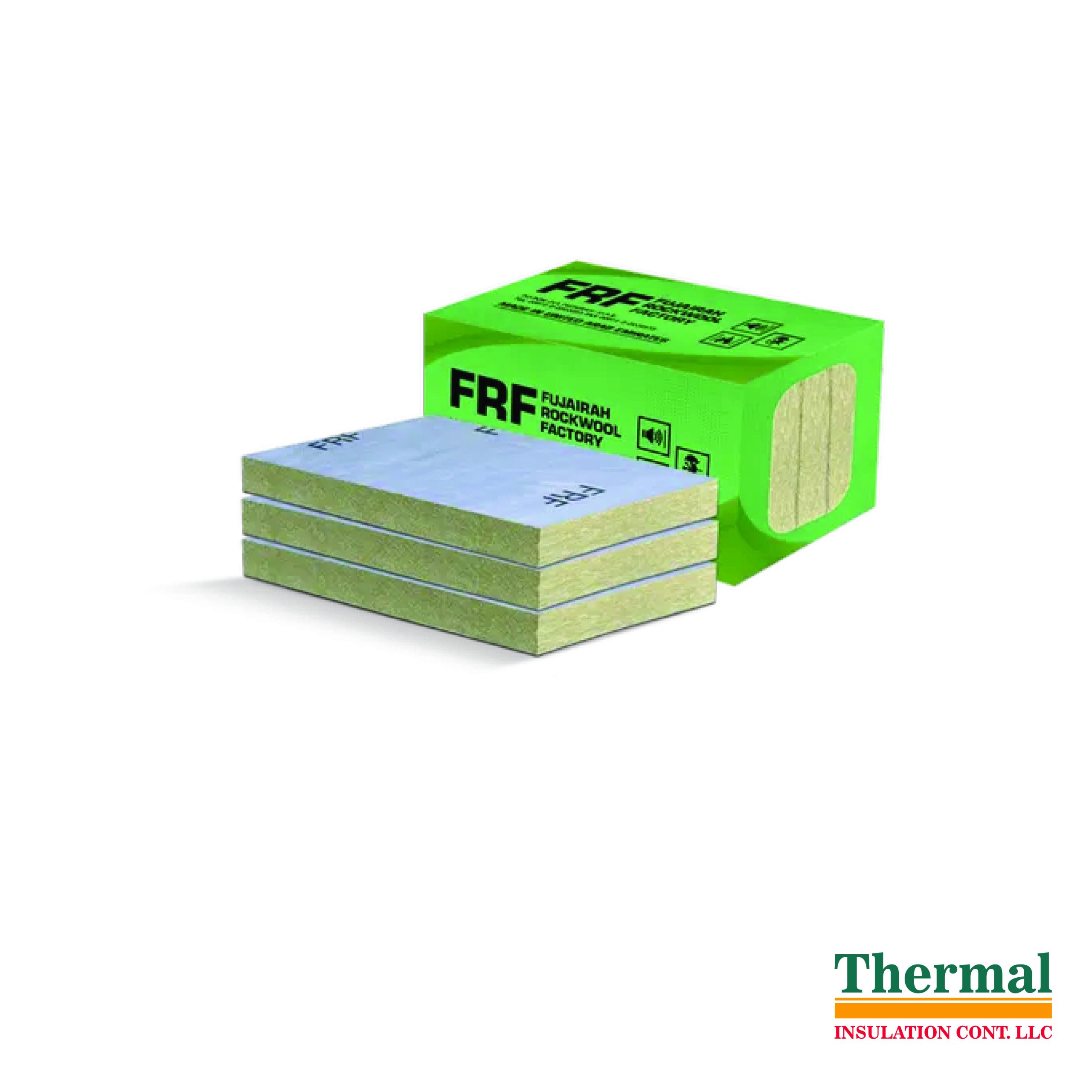

Fujairah Rockwool Slabs Supplier in UAE

Thermal Building Products supplies FRF (Fujairah Rock Wool Factory) Rockwool Slabs for thermal, acoustic and fire-related insulation applications in residential, commercial, industrial and HVAC projects.

FRF Rockwool Slabs conform to ASTM C612, equivalent BS 3958 Part 5, and BS EN 13162. They are manufactured from long, non-combustible resin-bonded rock fibres and are designed for thermal and acoustic insulation of flat or slightly curved surfaces.

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Applications

FRF Rockwool Slabs are suitable for applications including:

• Cavity walls
• Curtain walls
• Sandwich panels
• Internal and external wall insulation
• Ceilings and roofs
• HVAC and mechanical applications
• Fire protection of steel structures
• Bulkheads and ship decks
• Tank roofs
• Areas requiring acoustic insulation
• Applications requiring higher compressive strength

High-density slabs may be selected where insulation is exposed to mechanical loads or vibration.

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Standard Product Configuration

Property	Standard FRF Rockwool Slab
Standard Size	1.2 × 0.6 m
Standard Thickness	50, 75, 100 mm
Standard Density	30, 50, 75, 100, 140 kg/m³
Available Thickness Range	25–200 mm
Available Density Range	30–200 kg/m³

Other sizes and densities may be available upon request.

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Facing Options

FRF Code	Facing Description
SXXX	Without Facing
S2XX	Aluminium Foil Facing on One Side
S22X	Aluminium Foil Facing on Both Sides
S3XX	White Ceiling Veil on One Side
S4XX	Black Ceiling Veil on One Side
S44X	Black Ceiling Veil on Both Sides
SXXZ	Slab Sealed in Black Poly Bag
SBXX	Black Aluminium Foil on One Side
SBBX	Black Aluminium Foil Facing on Both Sides

Facing selection should be based on the intended application and project specification.

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Standard and Made-to-Order Range

Standard Range

Typical standard configurations include:

• Size: 1.2 × 0.6 m
• Thickness: 50, 75, 100 mm
• Density: 30, 50, 75, 100, 140 kg/m³

Special / Made-to-Order Range

Depending on project requirements, FRF documentation states that additional sizes and densities may be available upon request.

Available technical ranges include:

• Thickness: 25–200 mm
• Density: 30–200 kg/m³
• Alternative facing configurations

Current stock and manufacturing availability should be confirmed before ordering.

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Packing and Availability

Pack quantity can vary according to slab thickness, density and facing configuration.

For current:

• Pack quantity
• Stock availability
• Lead time
• Minimum order quantity

please confirm with the Thermal Building Products team before ordering.

Do not publish an exact pack quantity unless it is confirmed from current stock or supplier records.

Thermal Conductivity

Typical thermal conductivity values from the FRF Slab Datasheet are shown below.

Mean Temperature	30 kg/m³	50 kg/m³	80 kg/m³	100 kg/m³	140 kg/m³
24°C	0.040	0.038	0.035	0.034	0.034
35°C	0.043	0.040	0.036	0.035	0.035
50°C	0.047	0.043	0.038	0.037	0.037
100°C	0.059	0.053	0.046	0.044	0.043
150°C	0.078	0.069	0.054	0.052	0.049
200°C	0.098	0.085	0.066	0.061	0.058
250°C	0.126	0.107	0.080	0.072	0.068
300°C	—	—	0.096	0.084	0.080

Values are stated in W/mK.

FRF states these are typical figures according to ASTM C177 / ASTM C518 and are subject to normal manufacturing and testing variance.

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Service Temperature

FRF Rockwool insulation has a stated service temperature of 780°C when tested according to DIN 52271 at 80 mm thickness and 100 kg/m³ density.

FRF also states that its Rockwool fibres can withstand temperatures above 1000°C without melting.

Where facings or adhesives are used, their maximum service temperature may be lower than the Rockwool insulation itself and should be considered separately.

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Fire and Material Properties

FRF Rockwool Slabs are described as non-combustible when tested according to:

• BS 476 Part 4
• ASTM E136
• BS EN ISO 1182

The FRF datasheet also reports Class A1 reaction-to-fire performance according to BS EN 13501-1.

Final fire-performance requirements should always be checked against the applicable tested system and project specification.

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Stainless-Steel Compatibility

FRF documentation states that the insulation meets the requirements of ASTM C795 for thermal insulation used in contact with austenitic stainless steel.

Associated testing references include:

• ASTM C692 – Corrosion Test
• ASTM C871 – Chemical Analysis

Source: FRF Rockwool Slab Datasheet, Fujairah Rockwool Factory.

Installation Guidance

• Keep the insulation dry and protected before installation.
• Cut slabs carefully to the required dimensions.
• Fit slabs closely to minimise gaps.
• Select the density and facing according to the application and project specification.
• For aluminium-faced products, joints may be sealed with suitable aluminium tape where required by the specified insulation system.
• Installation should follow the approved project method statement and system requirements.

Technical Documents

Download the FRF technical documentation before specification or ordering:

• Download FRF Rockwool Slab Datasheet
• Download FRF Rockwool Catalogue

Ordering Fujairah Rockwool Slabs

When requesting a quotation, please provide:

• Required slab size
• Thickness
• Density
• Facing requirement
• Quantity
• Application
• Project requirements
• Delivery location

Providing these details helps the Thermal Building Products team confirm the suitable FRF product, current availability and quotation.

Frequently Asked Questions

What standard slab size is available?

The FRF datasheet lists a standard slab size of 1.2 × 0.6 m.

What standard thicknesses are listed?

Standard thicknesses are 50, 75 and 100 mm. Other thicknesses from 25–200 mm may be available upon request.

What densities are available?

Standard listed densities are 30, 50, 75, 100 and 140 kg/m³. FRF documentation states that densities from 30–200 kg/m³ may be available depending on the required configuration.

What facing options are available?

Options include unfaced slabs, aluminium foil facing, ceiling veil, black aluminium foil and black poly bag configurations.

Are special sizes or densities available?

Yes. FRF documentation states that other sizes and densities may be available upon request. Current availability should be confirmed before ordering.

How do I request a quotation?

Send the required size, thickness, density, facing, quantity, application and delivery location to the Thermal Building Products team.

Related Rockwool Products & Accessories

Explore our complete range of Rockwool insulation in the UAE for different thermal and acoustic insulation applications.

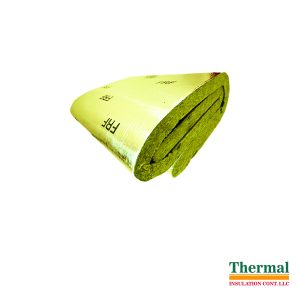

For flexible HVAC and equipment insulation, see our Rockwool Blanket with Foil.
