Product Type & Applicable Specifications
| Description | Hot-Rolled Steel (Coil/Strip/Sheets) |
| Specification
|
JIS G 3101/ G 3131 SS330, SS400, SS490, SS540ASTM A36 / A572 Gr. 42 / A572 Gr. 50DIN 17100 DIN St 32 / St 37-2 / St 44-2 / St 50-2 / St 52-3 BS 4360/ 1986 EN 10025 |
| Width Tolerance | Width up to 2000mm: -0/+20mm Width ≥ 1500mm: -0/+25mm |
Product Size & Form Hot Rolled Material
| Thickness Range (mm) | Width Range (mm) | Form | Remarks |
| 1.00 – 20.00 | 1000 – 2000 | Coil form | Mill Edge |
| 1.00 – 20.00 | 650 – 2000 | Coil form | Mill Edge |
| 1.00 – 3.00 | ≥ 100 | Coil form | Slitted Edge |
| 1.00 – 15.07 | 1200 – 3000 | 2400 – 6000 Sheet | Cut to Length |
Product Type & Applicable Specification
General -Purpose Cold -Rolled Steel Sheets and Coils (JIS G3141)
| Description | Coild Rolled Steel (Coil/Strip/Sheets) |
| Commercial Quality | JIS 3141 SPCC JIS 3141 SPCCT. |
| Drawing Quality | JIS 3141 SPCD. |
| Deep Drawing Quality | JIS 3141 SPCE , JIS 3141 SPCF. |
| Extra Deep Drawing Quality | JIS 3141 SPCG. |
*other grade can be supplied on mutual agreement.
Product Size & Form in Cold -Rolled Material
| Thickness Range (mm) | Width Range (mm) | Form | Remarks |
| 0.40 – 2.00 | 900 – 1250 | Coil form | Mill Edge |
| 0.40 – 2.00 | 250 – 1250 | Coil form | Mill Edge |
| 0.40 – 2.00 | ≥ 30 | Coil form | Slitted Edge |
| 0.40 – 2.00 | 1000 – 1250 | 2400 – 6000 | Cut to Length |
Product Type & Applicable Specification
Aluminium Plain Sheets
Grade: AA1100/AA1200 / Size /Width: 4′ x 8′
Thickness: 0.4 mm to 10.0 mm
Aluminium Chequered Sheets
Grade: AA1100/AA1200 / Size /Width: 4′ x 8′
Thickness: 1.5 mm to 6.0 mm

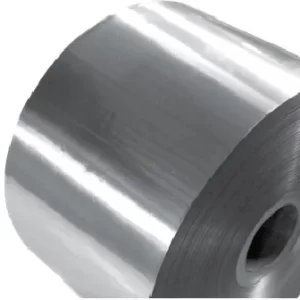

Aluminium Coils
Grade: AA1100/AA1200 /Size /Width: 1219mm / 1500mm
Thickness: 0.5 mm to 3.0mm
CHEQUERED PLATES
ASTM A36 / S275JR/ SS400
Width:1219mm x 2438mm Thickness: 1.8mm to 10mm
Width: 1500mm x 6000mm Thickness: 3.0mm to 10mm
