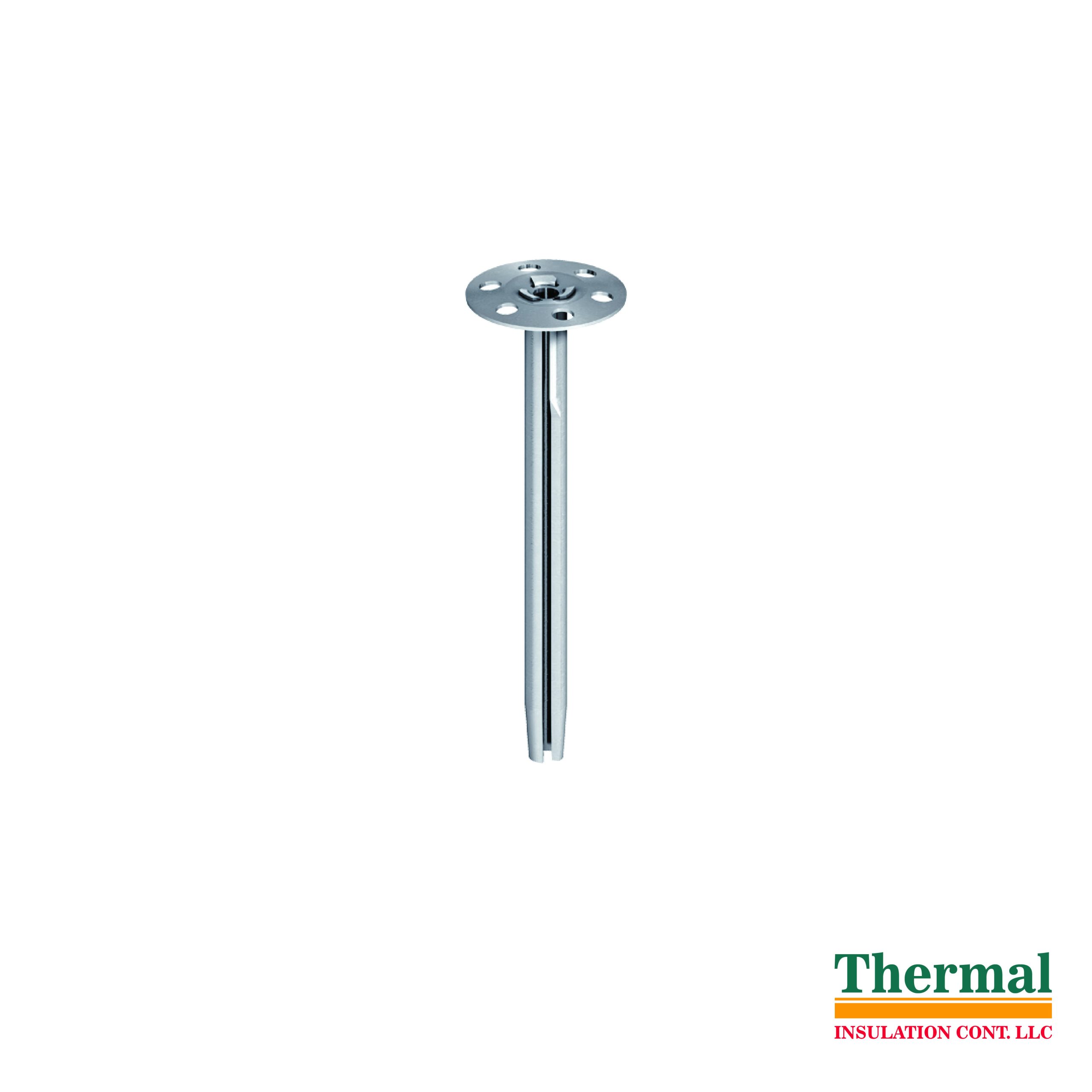

Metal Fire Rated Anchor (EJOT)

EJOT Metal Anchors offer unparalleled strength and reliability for your construction projects. Engineered with precision and durability, these anchors provide robust support in various applications, ensuring safety and stability in every installation. Trust EJOT Metal Anchors for superior performance and peace of mind.

For fixing hard insulation materials. In combination with the EJOT® DMT metal insulation stress plate in Dubai and also for soft insulating materials in UAE on competitive price. Metal Insulation products for fixing insulation materials for high fire protection requirements.

The EJOT® insulation support anchors are used to fasten soft and hard insulating material in rear ventilated facades. The insulation board fastening is carried-out according to DIN 18516-1.

Rotary hole drilling is obligatory in aerated concrete and perforated brick masonry.

For the usage in non-accessible areas of rear ventilated facades, we recommend the metal insulation support anchor made of stainless steel.

Easy installation by striking in, self-expanding
Easy installation
Fire performance class A1: non-combustible according to DIN EN 13501-1:2010-01 (test certificate no. PZ 3.1/17-226-1)
Technical specifications
Characteristic values

Plate diameter: 35 mm
Shaft diameter: 8 mm
Drill bitdiameter: 8 mm
Drill hole depth ≥ t: 60 mm
Embedment depth ≥ hv: 40 mm
Axial distance a ≥: 160 mm
Edge distance ar≥: 80 mm
Minimum component thickness hmin: 100 mm
Characteristic loads

Recommended tensile loads Frec

Concrete ≥ B25: 0,20 kN
Solid sand-lime brick: 0,20 kN
Bricks: 0,20 kN
Vertically perforated clay bricks: 0,05 kN
Perforated sand-lime brick: 0,05 kN
Recommended transverse loads Frec

Concrete ≥ B25: 0,25 kN
Solid sand-lime brick: 0,25 kN
Bricks: 0,25 kN
Vertically perforated clay bricks: 0,10 kN
Perforated sand-lime brick: 0,15 kN
